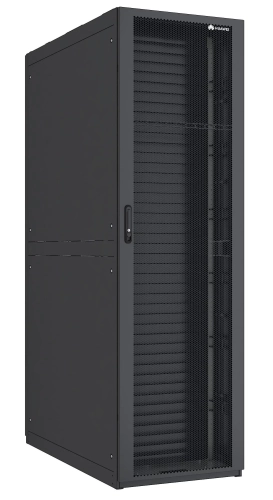

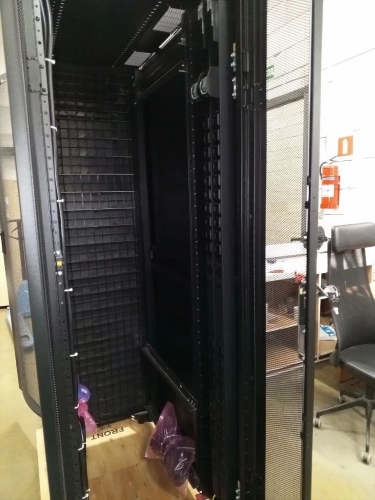

Серверный шкаф HUAWEI Universal Cabinet for Server (02114648.)

1

Крышка

2

3

Боковая панель

4

Монтажная планка

5

Стойка

6

Передняя дверь

Dimensions (H x W x D)

2000 mm x 600 mm x 1200 mm

Capacity

42 U of internal space (1 U = 44.45 mm)

Weight

• 120 kg (with only the front and rear doors)
• 170 kg (with the front door, rear door, guide rails, and cables)

Cabling mode

Overhead or underfloor cabling

Installation mode

Fastening installation or non-fastening installation

Both modes are applicable to either concrete or ESD floors.

Material

High-intensity G-A quality carbon cold-rolled steel plates and galvanized sheets that comply with RoHS and UL

Heat dissipation

Perforated doors, front-to-rear cooling, and underfloor air intake

Operating temperature

• Long term: 0°C to 50°C
• Short term: –5°C to +50°C

Operating humidity

• Long term: 5% RH to 85% RH
• Short term: 5% RH to 95% RH
